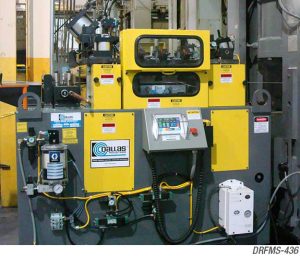

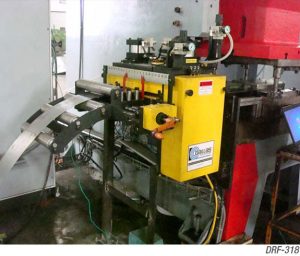

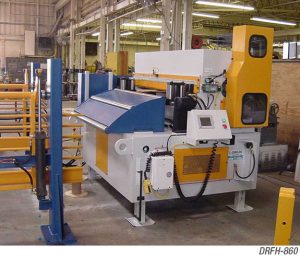

SERVO FEEDS
Widths from 12” to 84”
Massive side plates with cartridge flange bearings
Adjustable height cabinet
Zig-Zag feeds provide a great way to minimize material scrap when running circle blanks. Dallas’ reputation as a leader in zig zag feed technology is well-earned…

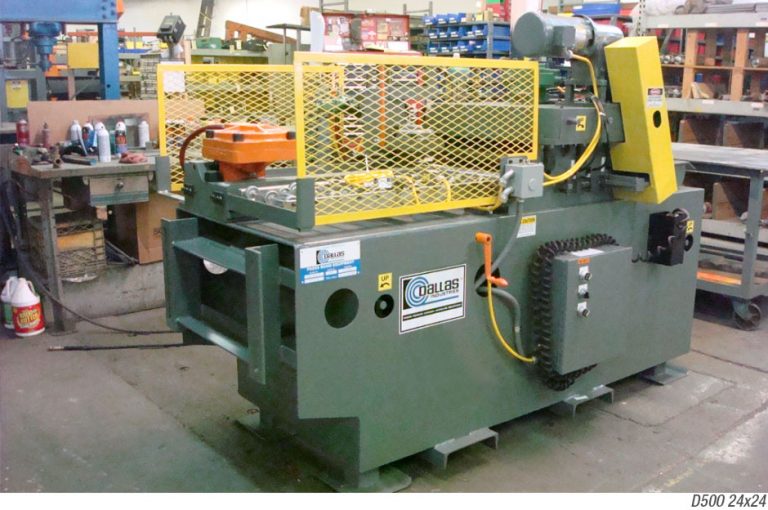

AIR FEEDS

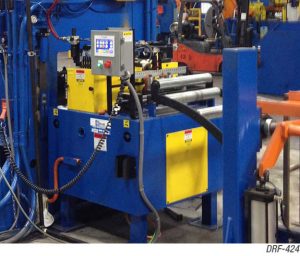

SERVO FEEDS
WITH PULL-THRU STRAIGHTENERS
Dallas servo feeds with pull-thru straighteners are engineered, built and have the power to easily handle materials up to 0.500 inch thick and widths from 6 up to 84 inches. They are best utilized in progressive die and transfer-type stamping operations. The close proximity of the straightener to the press tooling facilitates rapid flatness correction of coil stock as it is being processed. Pull-thru straighteners are available in 5, 7, 9, and 11 roll versions with roll diameters from 2 ¼” to 5”. Additional features can include LCD readouts, powered and air operated pinch rolls, automatic disengage clutch, chrome and polished rolls and even a pivoting straightening head for true pilot release.
To add even more versatility to a servo feed with pull thru straightener, consider adding our unique Piloting Head Straightener….
POWERED STRAIGHTENERS

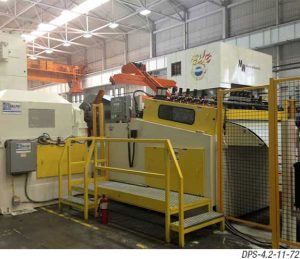

Two straightener model available – DPS-2.25 & DPS-3.0
Widths from 6” to 48”
All rolls are solid (not tubing)
Three straightener roll diameters available – DPS-3.5, DPS-4.2 & DPS-5.0
Widths from 12” to 84”
Available Hi-Flight backup rolls for maximum
COIL REELS

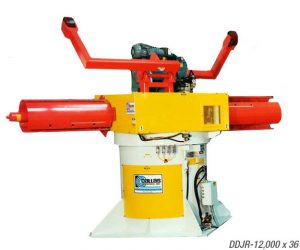

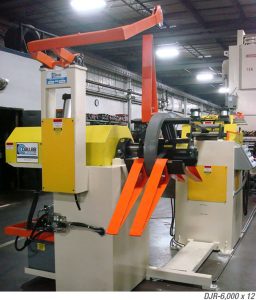

Dallas engineers a wide variety of reel sizes and configurations to meet your current requirements as well as future needs. With coil weight capacities ranging from 1,500 to 60,000 lb. in stock width capacities from 12 to 84 in. wide, we have you covered. Reels can be manufactured as either motorized (AC drive) or pull-off (drag brake) depending on which is best suited for your application. Dallas reels are built with superb quality that includes the use of pillow-block bearings, heavy-duty cabinets, and only well-known brand names of supplied components. Standard features on our reel include wedge or link type expansion, manual or hydraulic expansion (and/or hydraulic threading drives), coil keepers and loop controls. Options include various loop controls (laser, photo electric, etc.), brakes designs including failsafe designs, hold down coil restrictors, and load cars.
Widths to 84” wide
Coil Weights to 60,000 Lbs.
Manual and hydraulic mandrel expansion available, depending on size of reel.
Ideal for simple loading and unloading of coils
Load car has either 18” or 24” of lift
Options for the load car includes narrow coil supports, remote pendant, auto coil centering and integrated coil upender.
Widths to 60” wide (consult factory for wider)
Coil Weights to 20,000 Lbs.
Manual and hydraulic mandrel expansion available, depending on size of reel.
COIL CRADLES

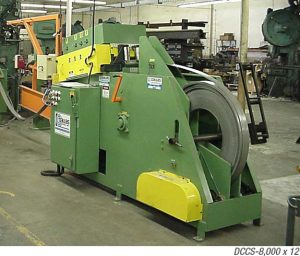

Dallas coil cradle capacities range from 4,000 to 50,000 lbs. and come standard with heavy-duty cabinets and side plates built to stand up to your toughest jobs. Features include full width powered nest rolls, adjustable side plates, AC variable speed drives, and cluster geared pinch rolls. Both pinch rolls and nest rolls are powered from a common cradle drive. Optional overhead, enclosed loop deflectors and guide-chutes direct the flow of the material and provide easy loading. Powered straighteners can be added to this configuration. Alternatively, cradle/straightener combo units (slack loop in front) are also available.
Cradle with Overhead Deflector – this is a common configuration for a cradle line. The coil is driven via the cradle nest rolls….
