Press Advantages

Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.
Extra-long gibs provide excellent control of slide alignment and accuracy throughout the entire stroke.
Slide comes equipped with a removable, steel, T-slotted die-mounting plate for easy modification, repair or replacement.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
At no additional cost, our press control comes with features that are often optional on standard press controls:
• Six programmable limit switches
• Four programmable die protection inputs
• LCD display screen for status and fault messages
• LED display for crank angle and spm

Standard Features

Our OCP Series 1-point gap frame presses come standard with:

  • Wet clutch and brake
  • Flywheel braking
  • Hydraulic overload system
  • Air counterbalance system
  • Automatic lubrication system
  • Digital die height indicator
  • Removable, flanged, T-slotted slide plate and bolster
  • Motorized slide adjustment (on presses over 35 tons)
  • Press control with:
    • Programmable limit switches
    • Programmable die monitor inputs
    • Six-digit part and batch counters
    • Interlocked die safety block

Optional Features

Options on our OCP Series 1-point gap frame presses include:

  • Link motion drive technology
  • Press controls from industry leaders like Link, Wintriss, Helm (Allen-Bradley), Toledo (Allen-Bradley), Siemens, Mitsubishi, etc.
  • Anti-vibration press leveling mounts
  • Safety light curtains
  • Tonnage monitor
  • Quick die change system
  • Die cushion

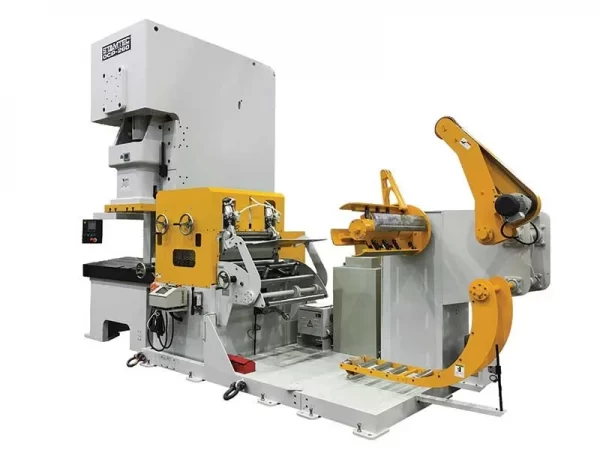

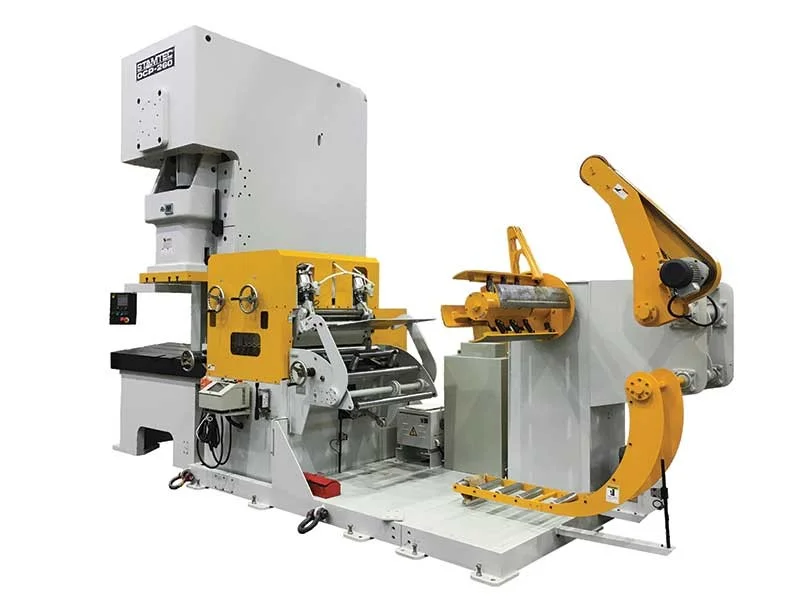

  • Compact servo feed line
  • Knockout bar

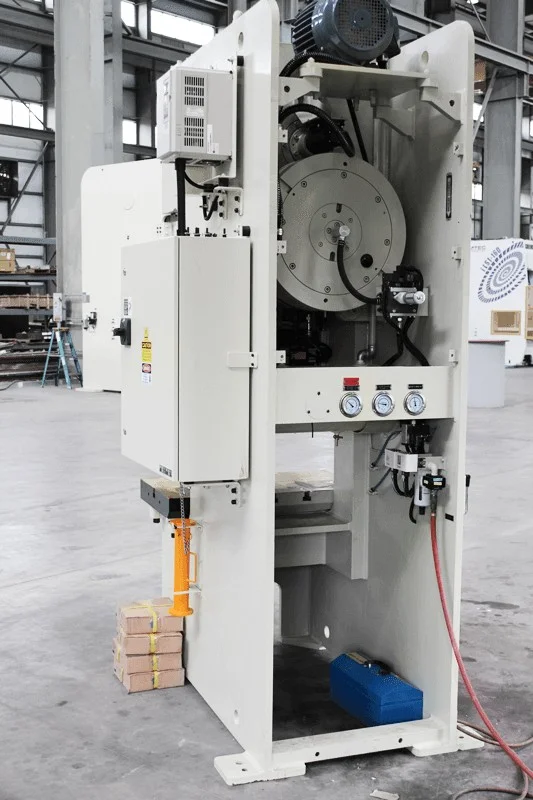

Press Components

  1. Press frame
  2. Flywheel
  3. Wet clutch and brake
  4. Pinion drive shaft
  5. Main Gear
  6. Counterbalance
  7. Crankshaft
  8. Adjusting screw
  9. Hydraulic overload
  10. Slide
  11. Knockout
  12. Slide plate (detachable)
  13. Bolster

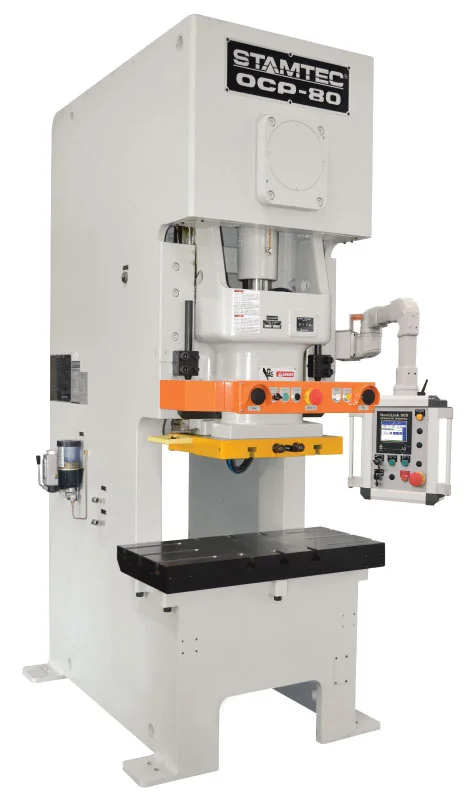

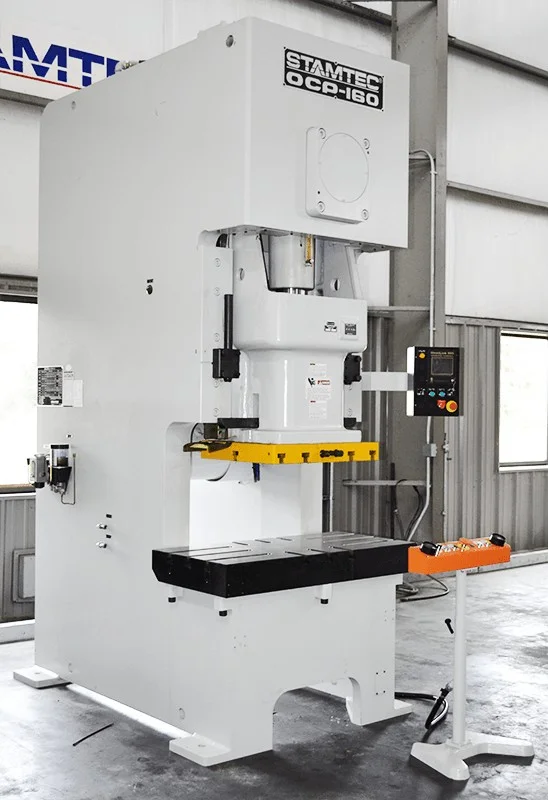

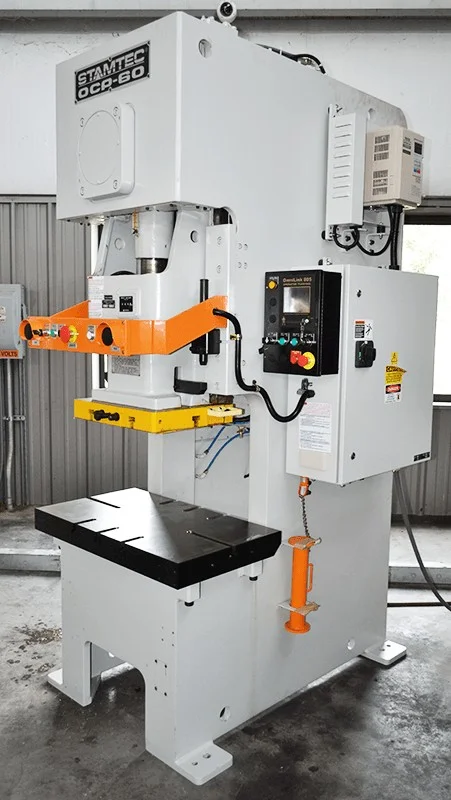

OCP Series Gap Frame Press

SKU N/A Categories , Tag

Equipment Description

Description

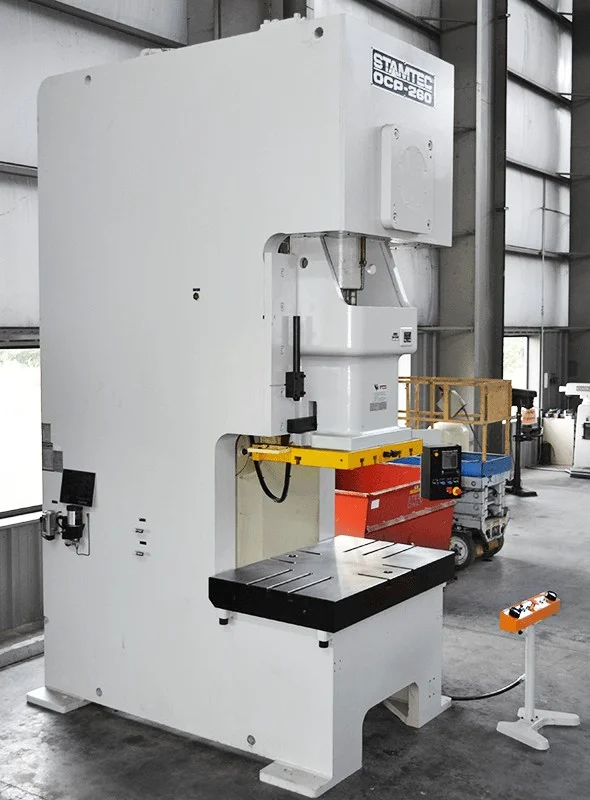

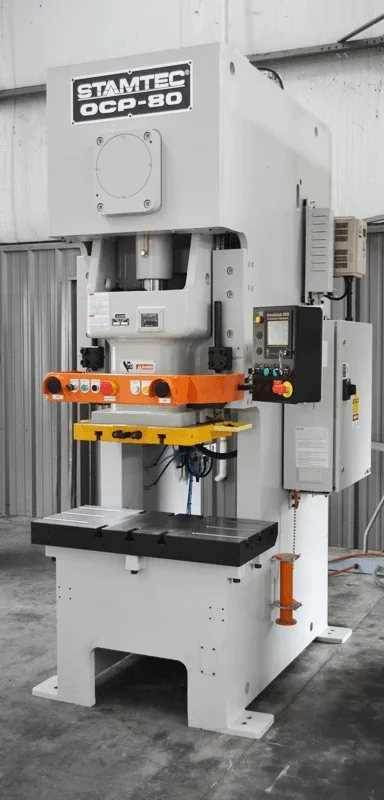

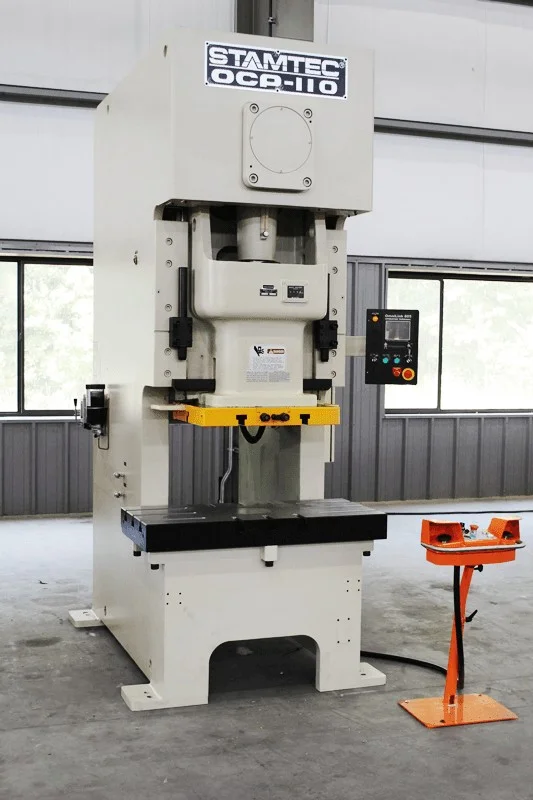

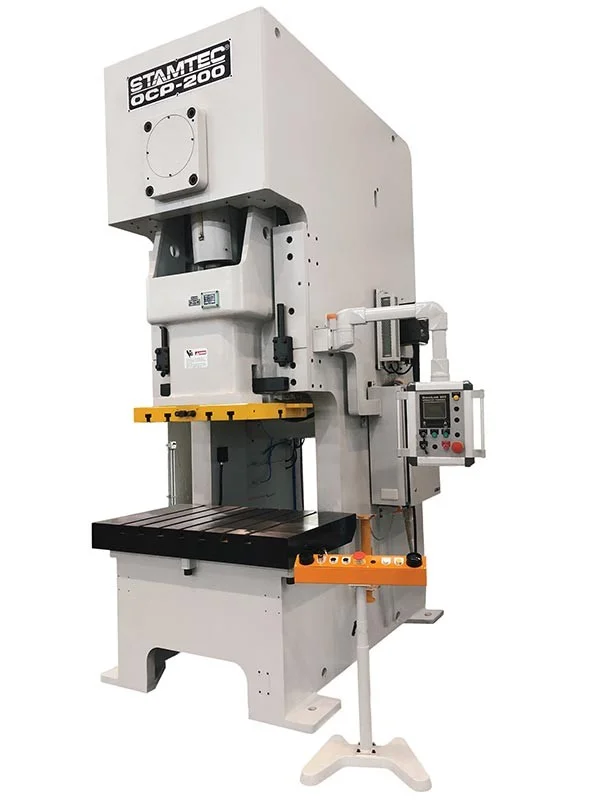

The Stamtec OCP one-point gap frame press (a.k.a. OBG, OBS, OBI, or C-frame) is designed for stamping small parts at high single-stroking rates or in continuous mode, using either blanks or coil stock. The OCP metal stamping press provides all the features you expect to find in a world-class press, at a very competitive price, backed by a three-year (calendar-based) warranty without limitation.

TONNAGE RANGE: 27 – 330
DELIVERY TIME: In stock, or with quick delivery

Review the specs and advantages of our OCP Series gap frame press below, and then contact us for assistance in identifying the right mechanical press for your application.

Stamtec stamping press machines can be customized to meet a wider range of SPM, stroke, rating point (BDC), bed and other specifications and dimensions.
