Press Advantages

Extra-long, box-type centered gibs guide the slide during the working portion of the stroke. The design of this mechanical stamping machine provides full control of left-to-right and front-to-back slide alignment.

Heavy, one-piece welded steel frame is fully stress relieved and designed to resist deflection, providing more accurate stampings and longer die life.

Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.

Standard Features

  • Wet clutch and brake
  • Flywheel brake
  • Hydraulic overload system
  • Air counterbalance system
  • Automatic lubrication system
  • Digital die height indicator
  • Removable, flanged, T-slotted slide plate and bolster
  • Motorized slide adjustment
  • Press control with:
    • Six programmable limit switches
    • Four programmable die monitor inputs
    • Six-digit part and batch counters
    • LCD display screen for status and fault messages
    • LED display for crank angle and spm
    • Interlocked die safety block

Optional Features

  • Link motion drive technology
  • Press controls from industry leaders like Wintriss, Link, Helm (Allen-Bradley), Toledo (Allen-Bradley), Siemens, Mitsubishi, etc.
  • Anti-vibration press leveling mounts
  • Safety light curtains
  • Tonnage monitor
  • Quick die change system
  • Die cushion
  • Knockout bar
  • Compact servo feed line

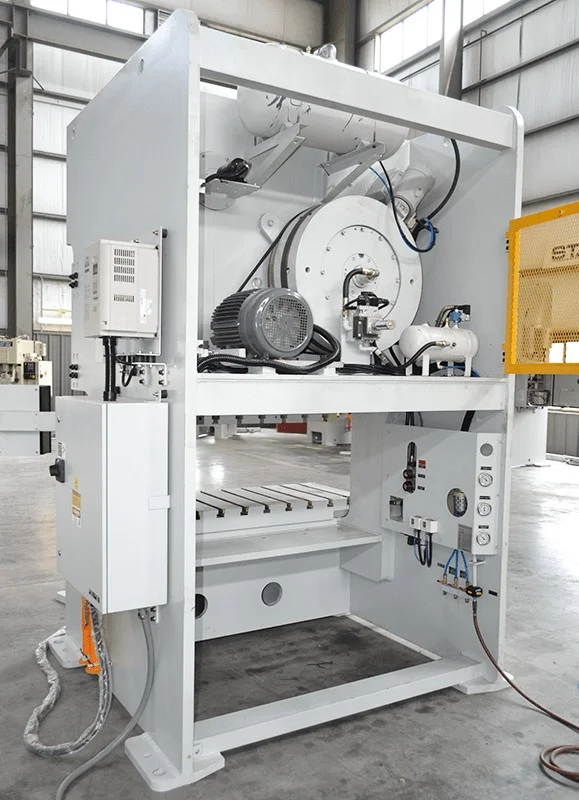

Press Components

  1. Frame
  2. Flywheel
  3. Pinion shaft
  4. Wet clutch and brake
  5. Main gear
  6. Crankshaft
  7. Counterbalance
  8. Connection
  9. Adjusting screw
  10. Hydraulic overload chamber
  11. Slide
  12. Slide plate (detachable)
  13. Bolster

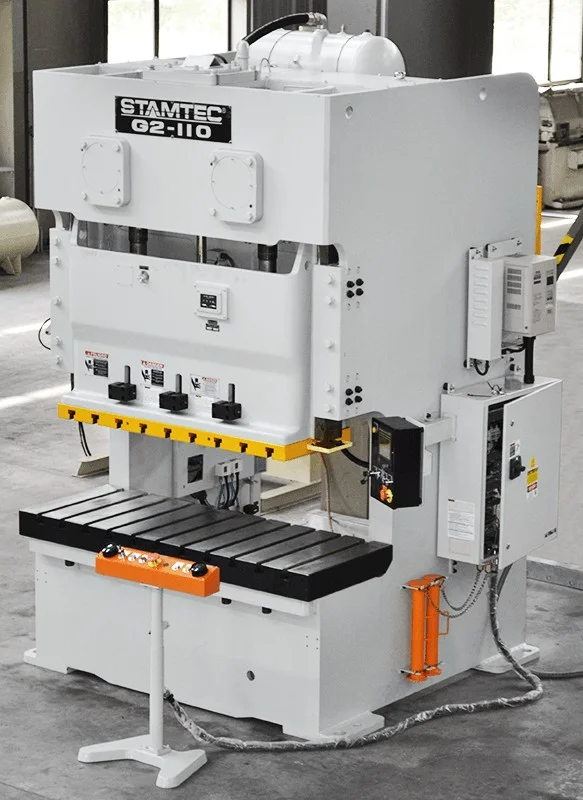

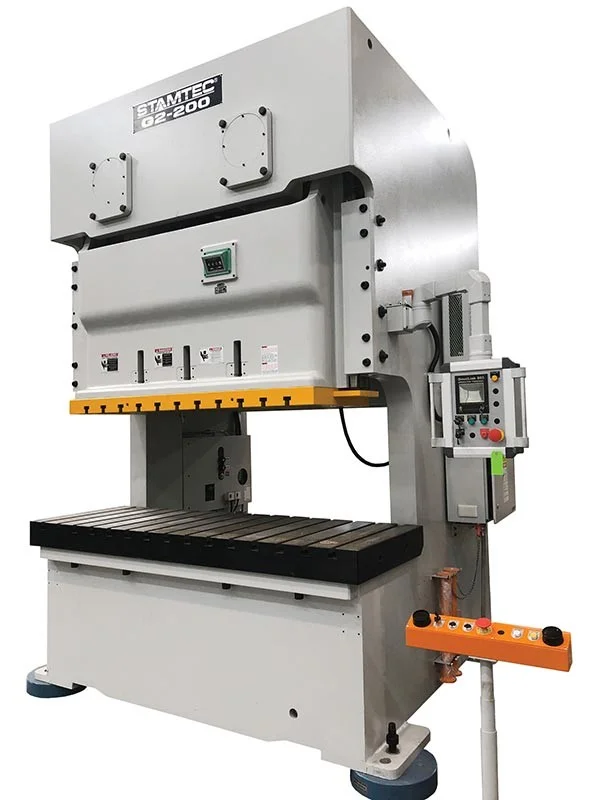

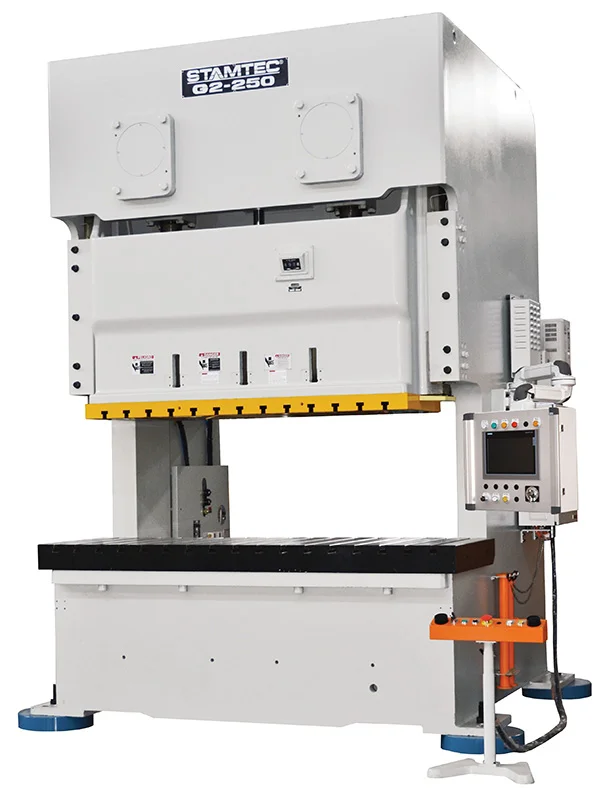

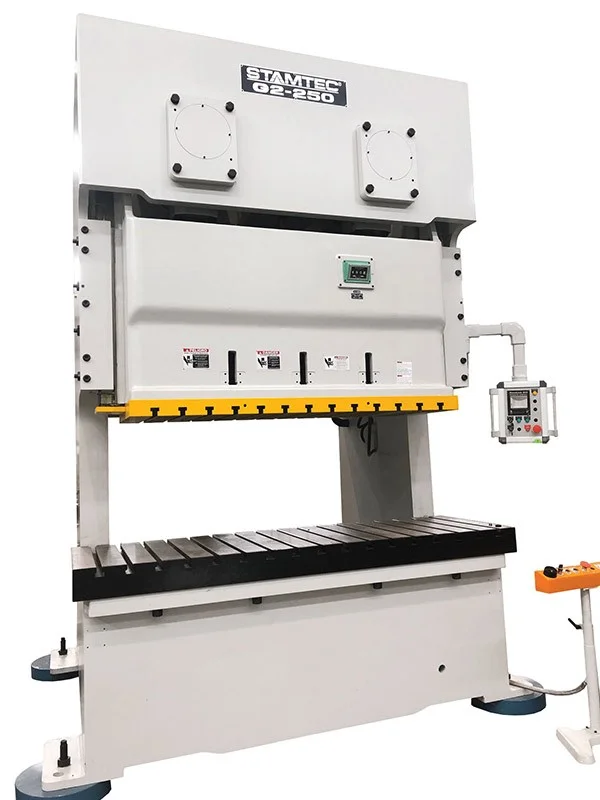

G2 Series Gap Frame Press

SKU N/A Categories , Tag

Equipment Description

Description

The Stamtec G2 series two-point gap frame press (a.k.a. OBG, OBS, OBI, or C-frame) is designed for stamping relatively long, narrow parts at high single-stroking rates or in continuous mode, using either blanks or coil stock. The G2 series provides a large die area at a very economical price and can run progressive dies that need the longer bed area. The slide on these metal stamping presses is guided by six-point, full-length box type gibs, providing excellent control of slide alignment and accuracy throughout the entire stroke.

TONNAGE RANGE: 121 – 330
DELIVERY TIME: in stock or with quick delivery

Read the specs and press advantages below to learn more and then contact us by calling 931-393-5050 or submitting this online form for help identifying the gap frame press you need.

Stamtec presses can be customized to meet a wider range of SPM, stroke, rating point (BDC), bed and other specifications and dimensions.
