SERVO PRESS | GAP FRAME | 80 - 250 METRIC TONS CAPACITY

The Original, And Best, Direct Drive Servo Press System:
AIDA is the leading servo press manufacturer and was the pioneer of Direct Drive Servo Technology over a decade ago. AIDA was the first press manufacturer to use a direct drive servo system for stamping presses which represents the first fundamental change in the metalforming industry in more than 30 years. The key is the high torque/low RPM servo motors designed and manufactured by AIDA specifically for stamping press applications. Connected directly to the crank, these servo motors, provide the precise accuracy and reliability you expect of AIDA presses. The result is improvement in almost every critical area of press performance. Presses featuring AIDA’s Direct Drive ServoFormer technology, like the DSF-C1 Gap Frame Servo Press, have the same torque and energy characteristics as conventional mechanical presses.
Completely programmable stroke. Unlimited flexibility of part runs. More press for your dollar. And it’s just the beginning.

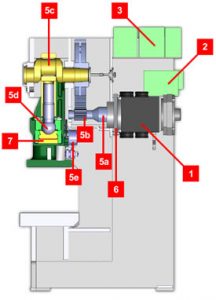

Features & Benefits

- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Energy Management System
- Manual Step Feed
- Standard Mechanical Drivetrain a: Driveshaft with Integral Pinion b: Main Gear c: Crankshaft d: Connection Rod with Ball Type Connection e: Electric Motor Slide Adjustment
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Length 6-Point Slide Guides
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
Specifications
DSF-C1 Model Specifications (metric) | Unit | DSF-C1-800 | DSF-C1-1100 | DSF-C1-1500 | DSF-C1-2000 | DSF-C1-2500 | |
Tonnage Capacity | kN | 800 | 1100 | 1500 | 2000 | 2500 | |
Rated Tonnage Point | mm | 5.0 | 5.0 | 6.0 | 6.0 | 6.5 | |
Working Energy | J | 4000 | 4600 | 7900 | 13100 | 24000 | |
Stroke Length | Upper Row Denotes FWD/REV Motion | mm | 60/100/130 | 70/110/150 | 80/120/160 | 110/160/200 | 120/180/240 |
160 | 180 | 200 | 250 | 300 | |||
Note 1 Continuous SPM (No Load) | Varies by Stroke Length | spm | 118/96/82 | 114/93/76 | 100/82/68 | 81/67/57 | 72/59/48 |
~80 | ~70 | ~60 | ~50 | ~40 | |||
Die Height | mm | 320 | 350 | 400 | 450 | 540 | |
Slide Adjustment | mm | 80 | 90 | 100 | 110 | 120 | |
Slide Area (L.R. x F.B.) | mm | 540 x 460 | 630 x 520 | 700 x 580 | 880 x 650 | 1100 x 730 | |
Bolster Area (L.R. x F.B.) | mm | 1030 x 600 | 1140 x 680 | 1250 x 760 | 1470 x 840 | 1750 x 900 | |
Bolster Thickness | mm | 140 | 155 | 165 | 180 | 180 | |
Note 2 Frame Gap | mm | 310 | 350 | 390 | 430 | 470 | |
Max Upper Die Weight | kg | 183 | 530 | 727 | 1000 | 1300 | |
Main Motor (AC Servo) | kW | 25 | 35 | 40 | 40 | 45 | |
Power Supply Capacity | kVA | 21 | 21 | 26 | 35 | 43 | |
Required Air Pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Foundation Bolt Position (F.B. x L.R.) | mm | 1010 x 1210 | 1105 x 1440 | 1210 x 1660 | 1440 x 2020 | 1730 x 2135 | |
Bed Hole Dimension (F.B. x L.R.) | mm | 714 x 280 | 736 x 320 | 806 x 360 | 986 x 460 | 1220 x 480 |
STRAIGHTSIDE SERVO PRESSES | DSF-M2 | 315 - 1250 METRIC TONS CAPACTY

Maximized Servo Press Flexibility:
With its first servo press produced in 1996, AIDA SERVOPRO® presses have proven their reliability time and again in over 800 installations worldwide. Throughout these years, and thanks to our customers’ valuable feedback, AIDA has increased the understanding of servo drive technology for daily production use. Thanks to the numerous adjustments available, formability, flexibility and productivity are largely increased. The conclusion is SERVOPRO servo press technology can offer the most optimized stamping solution.
The AIDA DSF-M2 Straightside Servo Press is available in single and double gear configurations and includes all of the features and benefits of the entire range of AIDA servo presses, such as infinitely programmable stroke and velocity profiles, high torque / low rpm servo motors, and the AIDA ECO Servo Press Energy Management System.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
STRAIGHTSIDE SERVO PRESSES | DSF-N | 80 - 300 METRIC TONS CAPACTY

Featuring the AIDA Servo Press Drive technology that revolutionized the metalforming industry
Imagine being able to dial-in the stroke, velocity and dwell profile for any job . . . blanking, drawing, high precision, exotic materials . . . all on one press. With AIDA DSF Servo Press technology, you can have each press you own performing like multiple presses . . . an enormous competitive advantage for you. Plus, with AIDA’s exclusive high torque servo motor, you get the same torque characteristics and power consumption as mechanical presses, without a flywheel and clutch. Better performance. Less maintenance. Only from AIDA.
Features & Benefits

- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Energy Management System
- Manual Step Feed
- Standard Mechanical Drivetrain a: Driveshaft with Integral Pinion b: Main Gear c: Crankshaft d: Connection Rod with Ball Type Connection e: Electric Motor Slide Adjustment
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Length 6-Point Slide Guides
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
Specifications
DSF-N1 Model Specifications (metric) | Unit | DSF-N1-800 | DSF-N1-1100 | DSF-N1-1500 | DSF-N1-2000 | DSF-N1-3000 | |
Tonnage Capacity | kN | 800 | 1100 | 1500 | 2000 | 3000 | |
Rated Tonnage Point | mm | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 | |
Working Energy | J | 4000 | 4600 | 7900 | 13100 | 30000 | |
Stroke Length | Upper Row Denotes Fwd/Rev Motion | mm | 60/100/130 | 70/110/150 | 80/120/160 | 110/160/200 | 180/240/300 |
160 | 180 | 200 | 250 | 400 | |||
Note 1 Continuous SPM (No Load) | Varies by Stroke Length | spm | 118/96/82 | 114/93/76 | 100/82/68 | 81/67/57 | 52/45/38 |
~80 | ~70 | ~60 | ~50 | ~30 | |||
Die Height | mm | 320 | 350 | 400 | 450 | 550 | |
Slide Adjustment | mm | 80 | 90 | 100 | 110 | 120 | |
Slide Area (L.R. x F.B.) | mm | 700 x 460 | 800 x 520 | 900 x 580 | 1000 x 650 | 1300 x 900 | |
Bolster Area (L.R. x F.B.) | mm | 900 x 600 | 1000 x 680 | 1150 x 760 | 1250 x 840 | 1700 x 1200 | |
Bolster Thickness | mm | 140 | 155 | 165 | 180 | 200 | |
Note 2 Side opening | mm | 440 x 300(250) | 500 x 320(270) | 560 x 380(330) | 620 x 420(370) | 1000 x 570(520) | |
Max Upper Die Weight | kg | 300 | 350 | 500 | 1000 | 1300 | |
Main Motor (AC Servo) | kW | 25 | 35 | 40 | 40 | 50 | |
Power Supply Capacity | kVA | 21 | 21 | 26 | 35 | 69 | |
Required Air Pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Foundation Bolt Position (F.B. x L.R.) | mm | 1220 x 1200 | 1340 x 1310 | 1525 x 1450 | 1655 x 1590 | 2310 x 2090 | |
Bed Hole Dimension (F.B. x L.R.) | mm | 940 x 280 | 1040 x 320 | 1190 x 360 | 1300 x 460 | 1370 x 560 |
STRAIGHTSIDE SERVO PRESSES | DSF-N2 | 80 - 300 METRIC TONS CAPACTY

Big Motors. Big Advantage.
The AIDA DSF-N2 Servo Press uses AIDA’s High torque, low RPM servo motors.
AIDA’s direct drive offers the same stroke length and torque rating as a conventional mechanical press while allowing full torque to be used at as little as five strokes a minute.
Competitive systems that use low torque motors and complex drive systems cannot match the performance of AIDA’s high torque, low RPM servo motor.
Because capacitors store power in the non-working portion of the stroke, power consumption is comparable to that of a mechanical press.
Features & Benefits

- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Energy Management System
- Manual Step Feed
- Standard Mechanical Drivetrain a: Driveshaft with Integral Pinion b: Main Gear c: Crankshaft d: Connection Rod with Ball Type Connection e: Electric Motor Slide Adjustment
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Length 6-Point Slide Guides
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
Specifications
DSF-N2 Model Specifications (metric) | Unit | DSF-N2-1100 | DSF-N2-1600 | DSF-N2-2000 | DSF-N2-2500 | DSF-N2-3000 | |
Tonnage Capacity | kN | 1100 | 1600 | 2000 | 2500 | 3000 | |
Rated Tonnage Point | mm | 5.0 | 6.0 | 7.0 | 7.0 | 6.0 | |
Working Energy | J | 6000 | 9600 | 16500 | 28000 | 39000 | |
Stroke Length | Upper Row Denotes Fwd/Rev Motion | mm | 70/110/150 | 80/120/160 | 110/160/200 | 120/170/230 | 120/180/240 |
180 | 200 | 250 | 280 | 300 | |||
Note 1 Continuous SPM (No Load) | Varies by Stroke Length | spm | 102/84/70 | 94/78/66 | 79/66/57 | 68/57/46 | 64/52/43 |
~70 | ~60 | ~50 | ~40 | ~35 | |||
Die Height | mm | 400 | 450 | 500 | 550 | 650 | |
Slide Adjustment | mm | 90 | 100 | 110 | 120 | 130 | |
Slide Area (L.R. x F.B.) | mm | 1360 x 520 | 1500 x 580 | 1850 x 650 | 2100 x 700 | 2400 x 900 | |
Bolster Area (L.R. x F.B.) | mm | 1660 x 680 | 1800 x 760 | 2150 x 840 | 2400 x 920 | 2400 x 1200 | |
Bolster Thickness | mm | 155 | 165 | 170 | 180 | 200 | |
Note 2 Side Opening | mm | 700 x 345(335) | 780 x 385(375) | 860 x 425(415) | 940 x 465(455) | 1220 x 590(580) | |
Max Upper Die Weight | kg | 550 | 800 | 1200 | 1650 | 2300 | |
Main Motor (AC Servo) | kW | 35 | 40 | 40 | 50 | 50 | |
Power Supply Capacity | kVA | 26 | 35 | 43 | 61 | 69 | |
Required Air Pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Foundation Bolt Position (F.B. x L.R.) | mm | 2090 x 1200 | 2270 x 1300 | 2620 x 1400 | 2920 x 1500 | 3260 x 1650 | |
Bed Hole Dimension (F.B. x L.R.) | mm | 1480 x 350 | 1600 x 380 | 1900 x 460 | 2200 x 480 | 2390 x 520 |
STRAIGHTSIDE SERVO PRESSES | DSF-N2 | 300 - 3500 METRIC TONS CAPACTY

More Servo Press Models & Tonnages:
AIDA’s DSF-S Large Capacity Straightside Servo Press offers the accuracy and reliability required for the automotive, appliance and furniture markets. AIDA’s DSF Series direct drive servoforming technology allows the DSF-S to provide superior control of all aspects of the stamping operation and offers other performance advantages including:
■ Increased productivity
■ Reduced vibration and noise
■ Forming operations not possible on conventional presses
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
STRAIGHTSIDE SERVO PRESSES | DSF-T LARGE CAPACITY | 300 - 3000 METRIC TONS CAPACTY
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
STRAIGHTSIDE SERVO PRESSES | DSF-D | 300 - 1200 METRIC TONS CAPACTY

Combining Proven Press Design with Advanced Servo Press Technology:
The AIDA NST-D Servo Press is the combination of proven and reliable press design with AIDA’s award winning advanced servo press technology. Just like the mechanical NST, the NST-D servo press uses AIDA designed roller guides, ball socket connections, and a hydraulic overload protection system. And like all AIDA presses featuring DSF Servo Press technology, the NST-D features completely programmable slide, stroke, and velocity profiles, as well as the many other advantages gained with AIDA’s Servo Press Technology. Contact AIDA today to learn how you can “Program Your Profit” with an AIDA DSF Series Servo Press.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
STRAIGHTSIDE PRECISION SERVO PRESS | DSF-U | 160 - 600 METRIC TONS CAPACTY

Combining Precision Stamping Design with Servo Press TechnologyThe DSF-U precision servo press series is a completely new and innovative metal stamping press that combines the award winning features of the ULX Series (2004 “Ten Greatest Innovations Prize” – Daily Industrial Press), with the highly celebrated AIDA DSF Servo Press system (2002 “10 Greatest Innovations Prize”, 2004 “Japan Brand Prize”, 2009 “10 Greatest Innovations Prize” – Daily Industrial Press). AIDA DSF Servo Press Technology, with its unique high-torque/low RPM servo motor design, offers completely programmable stroke and velocity profiles and a direct drive system.
Enabling Stampers to Shift to Near-Net-Shape Metalforming:
ULX series high precision presses, which incorporate a highly rigid 9-point support system, zero-clearance slide gibs and a no con-rod design, have enabled customers to shift from secondary machining processes to high-precision, near-net-shape metalforming. Additionally, the ULX increases the life of the die and achieves high dynamic accuracy not possible in a conventional mechanical press. AIDA’s ULX precision stamping presses are the first presses to be more accurate than the die. The DSF-U Servo Press will provide customers with the ability to produce products with even higher accuracies, especially products formed via ironing, flattening, or bulging processes that are easily influenced by changes in forming speeds.
New Forming Methods and Minimal Energy Consumption:
The DSF-U Series not only contributes to the manufacturing of major super-high precision parts demanded for by environment-related devices and safety-related components in automobiles, it has also contributed to the development of new materials and new forming methods. Additionally the AIDA developed capacitor bank system enables the production of products with minimal energy consumption.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
