UNITIZED
AIDA NS1 SINGLE POINT UNITIZED STRAIGHTSIDE PRESS | 80 - 200 METRIC TONS
Available in both Crank and Link Motion:
The AIDA NS1 straightside press, available in both crank and link motion models, has a unitized straightside frame construction which reduces deflection and enables high-precision forming. Features such as centered and full length slide guides, a forced recirculating lubrication system, AIDA’s Hydraulic Overload Protection System, and more make the NS1 a high performance stamping machine.
The optimum link motion of the NS1-NL Series, based on AIDA’s long experience and continuing technology improvement is suitable for drawing, bending, and compression works, and it widens the application range of press working.
Features & Benefits
- Centered and full-length slide guides
- Forced oil lubrication system on the crank bearings and in slide guide area
- Compact design frame reduces installation space
- Reduced frame deflection improves die life and part quality
- Operation panel designed for operability and safety
- Large easy to use touch-screen display
- Fastest hydraulic overload protection system in the industry, HOLP
- Link Motion (optional)
AIDA NS2 TWO POINT UNITIZED STRAIGHTSIDE PRESS | 110 - 300 METRIC TONS CAPACITY
Straightside Presses in both Crank and Link Motion:
Unitized straightside frame for minimal frame elongation. The NS2 Series is available in both crank motion and link motion models.
The AIDA NS2 has a unitized straightside frame for minimal frame elongation (up to NS2-2500, NS2-3000 frame assembly construction tightened by tie rod).
A forced circulation lubrication system, introduced to the crank bearings and the slide guides, improves Bottom Dead Center repeatability – by minimizing thermal expansion of the frame. Higher productivity is achieved with an increased maximum SPM of 10%.
Link motion, perfected by AIDA through decades of experience and engineering, expands the range of metal-forming possibilities to include difficult-to-form materials, and makes possible extended die life and low production noise levels.
Full guiding, via the full-length slide guides, provides high performance that is resistant to eccentric loads ensuring high accuracy at Bottom Dead Center and extended die life.
Features & Benefits
- Forced circulation lubrication system
- Centered and full-length slide guides
- Compact design, energy efficient
- Fastest hydraulic overload protection system in the industry, HOLP
- Link Motion (optional)
AIDA NSU TWO POINT UNITIZED STRAIGHTSIDE PRESS | 200 - 400 METRIC TONS CAPACITY
More Press for Your Dollar,
More Dollars for Your Business
Same quality and engineering as our other stamping presses, just a few less bells and whistles. 200 to 400 metric ton rating (10% more capacity right out of the box). Designed and constructed for easy, low-cost maintenance. Eccentric gear design ideal for high performance dimensional work – appliance, HVAC, furniture, etc. Rigid, unitized frame for rock-solid durability. Ball type slide connection. AIDA’s famous Hydraulic Overload Protection is standard. 0.001″/ft. bed and slide deflection rating under full load. ACCESS Control standard, or WINTRISS SmartPAC and the Link Systems Omni Link 5000 are available.
Features & Benefits
- AC Variable Motor
- Combination Clutch & Brake
- 8 Point Slide Guides
- Massive One Piece Fabricated Steel Frame
- Bed & Slide Designed for Maximum Deflection of 0.001”/ft under full load
- Eccentric Gear Drive
- Self Contained Slide Counter Balance
- AIDA Ball Socket Connections
- Hydraulic Overload Protection
- PLC Based Control
AIDA HERA TWO POINT UNITIZED STRAIGHTSIDE PRESS | 400 METRIC TONS
Reliability, Precision, and Ease of Use:
HERA series presses are built to offer the user reliability, precision, ease of use and safety thanks to their special features:
■ Structure made entirely of welded and normalized steel
■ Hardened and ground gear
■ Air-cooled clutch\brake unit with a low moment of inertia
■ High precision working meaning lower die maintenance costs
Features & Benefits
DESIGN – The design of the HERA is the result of detailed examination of every component of the press. All parts are designed and manufactured using modern computer aided systems. The principal parts are verified by Finite Element Analysis (FEA).
FRAME – All HERA presses are manufactured from a single fabrication of welded and normalized steel; with large end openings. To keep the overall dimensions to the minimum, the hydraulic, lubrication and pneumatic systems are integrated into the Frame.
GUARDING – The press is equipped with automatic rising screen guards in the die area. The guarding is according to EC regulations. Upon request, guards can be provided with sound-absorbent materials.
DRIVE – The main drive motor is variable speed, controlled by inverter. Other drive motors are available upon request.
FLYWHEEL – Air-cooled clutch/brake unit with a low moment of inertia.
KINEMATICS – Contra-rotating front to back eccentric shafts are driven by precision helical gears. Adjustable stroke is available as an option.
LUBRICATION SYSTEM – A progressive centralized recirculating system is used, fitted with filters, feedback switches and fillup point.
SLIDE – The slide is made of welded and normalized steel, with eight point gibs. The gibs can be adjusted in all directions. The adjustment of the slide is by electric motor.
OVERLOAD PROTECTION – Adjustable Overload Protection by a hydraulic system.
DIE CUSHIONS – Pneumatic die cushions are available as an option; these have a large pad area and are well guided by gibs in the bed. Larger forces can be provided by tandem cylinders.
QUICK DIE CHANGE – The HERA can be fitted with die lifters, tool loading arms and hydraulic clamping.
ELECTRICAL EQUIPMENT – A standard PLC is used for press automation and control. The operator interface is by touch screen, controlled parameters:
- Press speed setting and display
- Preset Parts and batch counters, machine cycles counter
- Manual and automatic setting of the slide position
- Electronic cam programmer
- Die feedback signals
- Die data archive
- Alarm display
- Automatic stroke change
- Die cushions
- Mechanical slide knock-outs
- Photoelectric guards
- Automatic die change
- Automatic die clamps
- Anti vibration press mounts
- Sound reducing panels
- Tonnage monitoring
- Bearing temperature monitoring
- Telephone assistance by modem
Specifications
HERA Model Specifications (metric) | ||||
Rated tonnage | kN | 4000 | ||
Nominal distance | mm | 6,3 | 12,7 | |
Reduction | simple | double | ||
Variable strokes | mm | 0 – 315 | ||
Fixed strokes | mm | 200 | ||
250 | ||||
315 | ||||
415 | ||||
Speed | spm | 25 – 75 | 15 – 45 | |
Slide adjustment | mm | 250 | ||
Note 1 Shut height | mm | 800 | ||
Bolster area | mm | 2200 x 1300 (1450) | ||
Unitized frame | 2500 x 1450 (1600) |
PROGRESSIVE
AIDA PMX PROGRESSIVE DIE PRESS | STRAIGHTSIDE | 300 - 1000 METRIC TONS CAPACITY
The World’s Finest Progressive Die Press:
The more accurate your stamping press is the longer the tooling will last – and the parts you produce will be of better quality for longer runs. AIDA’s unique slide link motion design minimizes heat and vibration found in dies run in conventional crank or eccentric shaft presses.
The slide guiding system helps eliminate slide tipping caused by off-center loading (inevitable in progressive die stamping). Link motion combined with features such as advanced controls, dynamic balancing, rigid frame structure, and Hydraulic Overload Protection enable the AIDA PMX presses to often double die life.
Better Productivity, Lower Overall Costs:
The PMX series uses these AIDA metalforming technology advancements to deliver better total productivity at lower overall costs. And some of our most popular PMX presses, the 300, 400, and 600 ton models, are available through our short delivery program, enabling you to take advantage of AIDA stamping press technology quicker than you might expect.
Features & Benefits
- Eight-Point Slide Guides
- Link Motion
- Wide Connections Spacing
- Dynamic Balancing
- Eccentric Shaft
- AIDA Ball Socket Connections
- Hydraulic Overload Protection
- PLC Based Control
AIDA NSU PROGRESSIVE DIE PRESS | STRAIGHTSIDE | 200 - 400 METRIC TONS CAPACITY
More Press for Your Dollar,
More Dollars for Your Business:
Same quality and engineering as our other stamping presses, just a few less bells and whistles. 200 to 400 metric ton rating (10% more capacity right out of the box). Designed and constructed for easy, low-cost maintenance. Eccentric gear design ideal for high performance dimensional work – appliance, HVAC, furniture, etc. Rigid, unitized frame for rock-solid durability. Ball type slide connection. AIDA’s famous Hydraulic Overload Protection is standard. 0.001″/ft. bed and slide deflection rating under full load. ACCESS Control standard, or WINTRISS SmartPAC and the Link Systems Omni Link 5000 are available.
Features & Benefits
- AC Variable Motor
- Combination Clutch & Brake
- 8 Point Slide Guides
- Massive One Piece Fabricated Steel Frame
- Bed & Slide Designed for Maximum Deflection of 0.001”/ft under full load
- Eccentric Gear Drive
- Self Contained Slide Counter Balance
- AIDA Ball Socket Connections
- Hydraulic Overload Protection
- PLC Based Control
AIDA 2MR DOUBLE CRANK PROGRESSIVE DIE PRESS | STRAIGHTSIDE | 100 - 1250 METRIC TONS CAPACITY
Reliability, Precision, and Ease of Use:
2MR Series General Purpose Straightside Stamping Presses are built to offer the user reliability, precision, ease of use, safety and customization thanks to their special features:
■ Design in accordance to the customer requirements
■ Structure made entirely of welded normalized steel which can be customized in many ways
■ Hardened and ground gear
■ Air-cooled clutch / brake unit with a low moment of inertia
■ High precision working which means lower die maintenance costs
Features & Benefits
DESIGN – The design is the result of detailed examination of every component of the press. All parts are designed and manufactured using modern computer aided systems. The principal parts are verified by Finite Element Analysis (FEA).
FRAME – The structure is made entirely of welded and normalized steel. Where practical for transport, Series 2MR presses are manufactured from a single fabrication. Larger presses are made in four pieces shrunk together with tie-rods. The tie rod pre-load is applied with hydraulic nuts. Series 2MR presses can be customised in many ways; they have large end windows, and flat surfaces for the fixing of transfer mechanisms, motorized loading arms, coil feeders etc.
GUARDING – The press is equipped with automatic rising screen guards in the die area. The guarding is according to EC regulations. Upon request, guards can be provided with sound-absorbent materials.
DRIVE – The main drive motor is variable speed, controlled by inverter. Other drive motors are available upon request.
FLYWHEEL – Air-cooled clutch/brake unit with a low moment of inertia.
KINEMATICS – According to the specification, the crown can be fitted with a left to right shaft or front to back shafts:
- Eccentric with fixed stroke
- Eccentric with automatic stroke change
- Link-drive optimized for deep drawing operations
- Speed-link for shearing and blanking operations
- Pneumatic
- Hydraulic
- Locking at BDC
- Damping on return stroke
- Adjustable position, stroke and force
- Multi stage for high forces
- Programmable die cushions and systems are can also be offered to suit special applications
- Die lifters in the bolster
- Die loading arms
- Hydraulic tool clamps, manually placed or automatic
- Push – Pull systems
- Fully automatic systems with die carts or shuttle tables
- Press speed setting and display
- Preset parts and batch counters, non-resettable machine cycles counter
- Manual and automatic setting of the slide position
- Electronic cam programmer
- Die feedback signals
- Die data archive
- Alarm display
- Link-drive
- Speed-Link
- Automatic stroke change
- Die Cushions in the base
- Mechanical or pneumatic knock-outs in the slide
- Photoelectric guards
- Manual die change or motorized with carts
- Automatic clamps
- Anti Vibration press mounts
- Hydraulic clutch
- Sound reducing panels
- Automation (transfers, arms)
- Tonnage monitoring
- Bearing temperature monitoring
- Telephone assistance by modem
AIDA S2 & S4 PROGRESSIVE DIE STRAIGHTSIDE PRESS | 400 - 3000 METRIC TONS CAPACITY
Progressive Die or Transfer Applications:
AIDA offers a complete range of transfer presses, from small-sized high output presses to large-size presses for automotive and household appliance components. AIDA also designs and produces a wide range of parts stacking/de-stacking and handling units.
AIDA S2 Straightside Stamping Presses are available in both progressive die and transfer configurations.
AIDA S4 Straightside Stamping Presses are designed and manufactured for large capacity transfer applications.
Features & Benefits
Eccentric Drive
- Eccentric Gear Execution
- Welded Frame (According to size)
- Fixed Pin
- Integrated Temperature Monitoring System (Option)
- High Stiffness
- Low Number of Parts
- High Reliability
- High Con-rod Length / Crank Ratio
- High Stiffness
- Lower Working Speed
- In Line Configuration at BDC
- High productivity
- Hydraulic Overload System
- Quick (High Flow) Release System
- Synchronous Control System
- Quick Refill Unit
- Cushions
- Pneumatic Cushions
- Hydraulic CNC Cushion
- Ejectors
- Die-holder plate Spigot-Wedge
- Moving Bolster
- Left to Right movement
- T-Track movement
- Electric Drive (Semi-automatic or Fully automatic)
- Pneumatic Drive (Semi-automatic)
- Tool Automation Connection
- Pneumatic, Lubrication, Electric Utilities Connection
- Automatic / Semi-automatic Quick Connection System
- Clamps
- Safety
- Electrical equipment
TRANSFER
AIDA SMX ECCENTRIC GEAR TRANSFER PRESS | STRAIGHTSIDE | 300 - 2000 METRIC TONS
High Precision Single Press Productivity or Multi-Press Transfer Systems:
AIDA’s SMX Series provides uncommon rigidity and precision in a general purpose, straightside press. Because of the high durability design and large front to back bed areas, SMX presses excel in demanding, non-stop production environments that involve large scale parts requiring deep draw stroke lengths and high production rates such as those common in automotive, appliance, furniture and other industries. SMX presses can optimize productivity by performing equally well as single presses or in multiple press transfer configurations using standard or customized automation systems. Massive transfer or modular transfer – and everything in between – AIDA has an advanced metalforming solution that will prove to you why better presses are better business.
Features & Benefits
- Advanced link motion (optional) with a reduced draw speed
- Wide suspension point spacing for increased eccentric load capability
- Tie-rod tightened frame, increasing rigidity and precision
- Eight-point square slide guide that limits lateral and longitudinal movement
- Minimal overall clearance to reduce the occurrence of breakthrough
- Overload protector utilizing an advanced metal seal design, offering fast response time for protecting your tooling & press
- Wet-type clutch/brake for less friction disc wear
- AIDA ACCESS Control
Specifications
SMX Model Specifications (metric) | SMX-2000 | SMX-3000 | SMX-4000 | SMX-5000 | |||||
Capacity | kN | 2000 | 3000 | 4000 | 5000 | ||||
Tonnage rating point (above B.D.C) | mm | 6.5 | 13 | 13 | 13 | ||||
Stroke length | mm | 300 | 460 | 500 | 460 | 510 | 460 | 510 | |
Number of continuous strokes | spm | 20~40 | 15~30 | 15~30 | 15~30 | ||||
Die height | mm | 600 | 700 | 800 | 800 | 900 | 800 | 900 | |
Slide adjustment | mm | 200 | 200 | 200 | 300 | 200 | 300 | ||
Slide area (L.R. x F.B.) | mm | 2150 x 1200 | 2150 x 1250 | 2450 x 1250 | 2500 x 1250 | 2750 x 1250 | 2500 x 1400 | 2750 x 1400 | |
Bolster area (L.R. x F.B.) | mm | 2150 x 1300 | 2150 x 1400 | 2450 x 1400 | 2500 x 1400 | 2750 x 1400 | 2500 x 1500 | 2750 x 1500 | |
Bolster thickness | mm | 180 | 200 | 220 | 240 | ||||
Bolster top face height above floor | mm | 800 | 800 | 800 | 800 | ||||
Main motor | kW | 30 | 37 | 55 | 75 | 75 | |||
Required air supply pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 | ||||
Type of cushion | 1P2C | 2P2C | 1P2C | 2P2C | 1P2C | 2P2C | 1P2C | 2P2C | |
Cushion capacity | kN | 320 | 160 x 2 | 480 | 240 x 2 | 800 | 400 x 2 | 1000 | 500 x 2 |
Stroke length | mm | 120 | 180 | 250 | 250 | ||||
Stroke adjustment | mm | 100 | 150 | 200 | 200 | ||||
Pad area (L.R. x F.B.) | mm | 1500 x 700 | 700 x 700 x 2 | 1700 x 820 | 820 x 820 x 2 | 2030 x 960 | 960 x 960 x 2 | 2100 x 1000 |
AIDA TMX LARGE CAPACITY TRANSFER PRESS | STRAIGHTSIDE | 300 - 4000 METRIC TONS
Total Transfer System:
AIDA’s TMX isn’t just a press. It’s a total transfer system. The TMX large capacity transfer press is a high performance press in 300 to 4000 metric ton rating, with quick change die and transfer, non-stop blank changing, and de-stack, and more.
The TMX series builds on AIDA’s strength in manufacturing transfer presses of various sizes. With high capacity to handle a wide range of applications, the TMX is custom designed to your specifications, and can include a link drive for deep draw and forming applications.
Features & Benefits
- Optional link drive
- Tie-rod type frame for excellent rigidity
- 8-point square slide guide minimizes longitudinal and transverse movement
- Fastest hydraulic overload protection system in the industry, HOLP
- Minimal overall clearance derived from high-precision components
- Wide suspension point spacing
- AIDA ACCESS Control
AIDA 2MR/TE DOUBLE CRANK TRANSFER PRESS | STRAIGHTSIDE | 100 - 1250 METRIC TONS CAPACITY
Reliability, Precision, and Ease of Use:
2MR Series General Purpose Straightside Stamping Presses are built to offer the user reliability, precision, ease of use, safety and customization thanks to their special features:
■ Design in accordance to the customer requirements
■ Structure made entirely of welded normalized steel which can be customized in many ways
■ Hardened and ground gear
■ Air-cooled clutch / brake unit with a low moment of inertia
■ High precision working which means lower die maintenance costs
Features & Benefits
DESIGN – The design is the result of detailed examination of every component of the press. All parts are designed and manufactured using modern computer aided systems. The principal parts are verified by Finite Element Analysis (FEA).
FRAME – The structure is made entirely of welded and normalized steel. Where practical for transport, Series 2MR presses are manufactured from a single fabrication. Larger presses are made in four pieces shrunk together with tie-rods. The tie rod pre-load is applied with hydraulic nuts. Series 2MR presses can be customised in many ways; they have large end windows, and flat surfaces for the fixing of transfer mechanisms, motorized loading arms, coil feeders etc.
GUARDING – The press is equipped with automatic rising screen guards in the die area. The guarding is according to EC regulations. Upon request, guards can be provided with sound-absorbent materials.
DRIVE – The main drive motor is variable speed, controlled by inverter. Other drive motors are available upon request.
FLYWHEEL – Air-cooled clutch/brake unit with a low moment of inertia.
KINEMATICS – According to the specification, the crown can be fitted with a left to right shaft or front to back shafts:
- Eccentric with fixed stroke
- Eccentric with automatic stroke change
- Link-drive optimized for deep drawing operations
- Speed-link for shearing and blanking operations
- Pneumatic
- Hydraulic
- Locking at BDC
- Damping on return stroke
- Adjustable position, stroke and force
- Multi stage for high forces
- Programmable die cushions and systems are can also be offered to suit special applications
- Die lifters in the bolster
- Die loading arms
- Hydraulic tool clamps, manually placed or automatic
- Push – Pull systems
- Fully automatic systems with die carts or shuttle tables
- Press speed setting and display
- Preset parts and batch counters, non-resettable machine cycles counter
- Manual and automatic setting of the slide position
- Electronic cam programmer
- Die feedback signals
- Die data archive
- Alarm display
- Link-drive
- Speed-Link
- Automatic stroke change
- Die Cushions in the base
- Mechanical or pneumatic knock-outs in the slide
- Photoelectric guards
- Manual die change or motorized with carts
- Automatic clamps
- Anti Vibration press mounts
- Hydraulic clutch
- Sound reducing panels
- Automation (transfers, arms)
- Tonnage monitoring
- Bearing temperature monitoring
- Telephone assistance by modem
AIDA S2/TE & 24/TE TRANSFER PRESS | STRAIGHTSIDE PRESSES | 400 - 3000 METRIC TONS CAPACITY
Progressive Die or Transfer Applications:
AIDA offers a complete range of transfer presses, from small-sized high output presses to large-size presses for automotive and household appliance components. AIDA also designs and produces a wide range of parts stacking/de-stacking and handling units.
AIDA S2 Straightside Stamping Presses are available in both progressive die and transfer configurations.
AIDA S4 Straightside Stamping Presses are designed and manufactured for large capacity transfer applications.
Features & Benefits
Eccentric Drive
- Eccentric Gear Execution
- Welded Frame (According to size)
- Fixed Pin
- Integrated Temperature Monitoring System (Option)
- High Stiffness
- Low Number of Parts
- High Reliability
- High Con-rod Length / Crank Ratio
- High Stiffness
- Lower Working Speed
- In Line Configuration at BDC
- High productivity
Accessories
- Hydraulic Overload System
- Quick (High Flow) Release System
- Synchronous Control System
- Quick Refill Unit
- Cushions
- Pneumatic Cushions
- Hydraulic CNC Cushion
- Ejectors
- Die-holder plate Spigot-Wedge
- Moving Bolster
- Left to Right movement
- T-Track movement
- Electric Drive (Semi-automatic or Fully automatic)
- Pneumatic Drive (Semi-automatic)
- Tool Automation Connection
- Pneumatic, Lubrication, Electric Utilities Connection
- Automatic / Semi-automatic Quick Connection System
LARGE CAPACITY
AIDA S1-E HEAVY STAMPING STRAIGHTSIDE PRESS | 300 - 500 METRIC TONS CAPACITY
Further Expanding the Processing Range:
The S1-E Series Heavy Stamping Press from AIDA expands the range of high-accuracy, heavy stamping by achieving three important elements in the stamping of thick plate:
■ Extends the die life
■ Reduces vibration and noise
■ Maintains high accuracy and high productivity
Long, eight-point slide guides and highly rigid frame construction assures high dynamic accuracy, this maintaining long die life. A special link motion mechanism provides optimum slide velocity which assures consistent product quality, and greatly reduces vibration and noise. Because of reduced clearance, the punch will not plunge into the die cavity as much as in conventional presses which results in quieter press performance, minimized vibration and extended die life. The AIDA Hydraulic Overload Protector (HOLP) operates instantaneously to protect the die and the press should overloading occur. By incorporating the die cushion within the bed, the press pit becomes unnecessary. This can greatly reduce foundation costs and facilitate press room layout changes.
Features & Benefits
- Extended Die Life
- Reduced vibration and noise
- High Accuracy and High Productivity
- Improved Dynamic Accuracy
- Unique Slide Motion
- Minimized Breakthrough
- Hydraulic Overload Protection
- Floor Mounting Design
Specifications
S1-E Model Specifications (metric) | Unit | S1-3000E | S1-5000E |
Capacity | kN | 3000 | 5000 |
Rated tonnage point above BDC | mm | 13 | 13 |
Stroke length | mm | 250 | 300 |
Number of strokes (spm) | Fixed (Standard) | 35 | 30 |
Variable (Option) | 15~40 | 15~35 | |
Die height | mm | 570 | 650 |
Slide adjustment | mm | 120 | 120 |
Slide area (L.R. x F.B.) | mm | 1000 x 900 | 1200 x 1100 |
Bolster area (L.R. x F.B.) | mm | 1000 x 985 | 1200 x 1215 |
Bolster thickness | mm | 180 | 200 |
Main motor (fixed speed) | kWXp | (VS.30) 22 x 4 | (VS.45) 37 x 4 |
Required air pressure | MPa | 0.5 | 0.5 |
Slide knockout capacity | kN | 30 (at 0.5MPa air pressure) | 260 (at 0.5 air pressure) |
Slide knockout stroke | mm | 100 | 120 |
Die cushion capacity (Air pressure to be boosted to 0.8 by a compressor) | kN | 160 (at 0.5 MPa air pressure) | 260 (at 0.5 MPa air pressure) |
250 (at 0.8 MPa air pressure) | 400 (at 0.8 MPa air pressure) | ||
Die cushion stroke length | mm | 110 | 130 |
Die cushion pad area | mm | Ø700 | Ø870 |
TIE ROD FRAME
AIDA MCX TWO POINT STRAIGHTSIDE PRESS | 315 - 1250 METRIC TONS CAPACITY
The Choice is Yours:
Single or Double Gear, 1/4 or 1/2 inch rating points, Mechanical or Servo. The MCX Series from AIDA offers the highest level of customization through multiple configurations. What does this mean for your stamping operation? Maximized Production and Maximized Profits. The MCX Series from AIDA offers maximum flexibility in press specification selection through:
■ Single or Double Eccentric Gear Drive
■ Standard or High Continuous Working Energy Capacity
■ 6.35 mm (0.25 in) or 12.7 mm (0.5 in) Rating Point
■ Mechanical or Servo Drive Packages
■ Wide Variety of Stroke Length & Die Height Choices Available in each Tonnage Capacity
■ Zero Clearance Roller-Type Slide Guides Standard with Oil Film Version as an Option
■ Standard AIDA Control or Optional 3rd Party Control (mechanical presses only)
Features & Benefits
- Highly Rigid Frame
- Counter-Rotating Eccentric Gears
- Self-Contained Counterbalance Cylinders
- Ball and Socket Connections
- Hydraulic Overload Protection (HOLP)
- Five Drive Options Mechanical Press Drive: Single gear 1/4″ rating Singe gear 1/2″ rating Double gear 1/2″ rating Servo Press Drive: Single gear Double gear
- Roller Guides (standard)
- Oil Film Guides (option)
- Combination Clutch and Brake
- Medium or High Energy Quill Mounted Flywheel
AIDA NST TWO OR FOUR POINT STRAIGHTSIDE PRESS | 300 - 1200 METRIC TONS CAPACITY
High Performance for Multi-Purpose Work:
Created to meet your conventional stamping press requirements in the most unconventional ways. High-end features with low-end pricing.
The AIDA NST press is conventional in name and price only. No glitz, just guts, the NST press was created for high performance, multi-purpose work with the same attention to detail, quality and engineering as every other AIDA solution.
This enables the NST to deliver decidedly unconventional performance and reliability through lower maintenance costs, longer die life and expanded capabilities. All that combined with lower initial costs helps you significantly increase the profitability of your business, proving once again that a better press is better business.
Features & Benefits
- Combination Clutch & Brake, Quill Mounted Flywheel, High Energy Flywheel & Motor Combination
- Wide Connections Spacing
- Four Piece Tie Rod Frame
- Roller Guides
- Self Contained Slide Counter Balance
- Eccentric Gear Drive
- AIDA Ball Socket Connections
- Hydraulic Overload Protection
- PLC Based Control
SERVO PRESSES
AIDA DSF-M2 STRAIGHTSIDE SERVO PRESS | 315 - 1250 METRIC TONS CAPACITY
Maximized Servo Press Flexibility:
With its first servo press produced in 1996, AIDA SERVOPRO® presses have proven their reliability time and again in over 800 installations worldwide. Throughout these years, and thanks to our customers’ valuable feedback, AIDA has increased the understanding of servo drive technology for daily production use. Thanks to the numerous adjustments available, formability, flexibility and productivity are largely increased. The conclusion is SERVOPRO servo press technology can offer the most optimized stamping solution.
The AIDA DSF-M2 Straightside Servo Press is available in single and double gear configurations and includes all of the features and benefits of the entire range of AIDA servo presses, such as infinitely programmable stroke and velocity profiles, high torque / low rpm servo motors, and the AIDA ECO Servo Press Energy Management System.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA DSF-N1 STRAIGHTSIDE SERVO PRESS | 80 - 300 METRIC TONS CAPACITY
Featuring the AIDA Servo Press Drive technology that revolutionized the metalforming industry:
Imagine being able to dial-in the stroke, velocity and dwell profile for any job . . . blanking, drawing, high precision, exotic materials . . . all on one press. With AIDA DSF Servo Press technology, you can have each press you own performing like multiple presses . . . an enormous competitive advantage for you. Plus, with AIDA’s exclusive high torque servo motor, you get the same torque characteristics and power consumption as mechanical presses, without a flywheel and clutch. Better performance. Less maintenance. Only from AIDA.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Energy Management System
- Manual Step Feed
- Standard Mechanical Drivetrain a: Driveshaft with Integral Pinion b: Main Gear c: Crankshaft d: Connection Rod with Ball Type Connection e: Electric Motor Slide Adjustment
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Length 6-Point Slide Guides
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA DSF-N2 STRAIGHTSIDE SERVO PRESS | 110 - 300 METRIC TONS CAPACITY
Big Motors. Big Advantage.
The AIDA DSF-N2 Servo Press uses AIDA’s High torque, low RPM servo motors.
AIDA’s direct drive offers the same stroke length and torque rating as a conventional mechanical press while allowing full torque to be used at as little as five strokes a minute.
Competitive systems that use low torque motors and complex drive systems cannot match the performance of AIDA’s high torque, low RPM servo motor.
Because capacitors store power in the non-working portion of the stroke, power consumption is comparable to that of a mechanical press.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Energy Management System
- Manual Step Feed
- Standard Mechanical Drivetrain a: Driveshaft with Integral Pinion b: Main Gear c: Crankshaft d: Connection Rod with Ball Type Connection e: Electric Motor Slide Adjustment
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Length 6-Point Slide Guides
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA NST-D STRAIGHTSIDE SERVO PRESS | 300 - 1200 METRIC TONS CAPACITY
Combining Proven Press Design with Advanced Servo Press Technology:
The AIDA NST-D Servo Press is the combination of proven and reliable press design with AIDA’s award winning advanced servo press technology. Just like the mechanical NST, the NST-D servo press uses AIDA designed roller guides, ball socket connections, and a hydraulic overload protection system. And like all AIDA presses featuring DSF Servo Press technology, the NST-D features completely programmable slide, stroke, and velocity profiles, as well as the many other advantages gained with AIDA’s Servo Press Technology. Contact AIDA today to learn how you can “Program Your Profit” with an AIDA DSF Series Servo Press.
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA DSF-S LARGE CAPACITY STRAIGHTSIDE SERVO PRESS | 300 - 3500 METRIC TONS CAPACITY
More Servo Press Models & Tonnages:
AIDA’s DSF-S Large Capacity Straightside Servo Press offers the accuracy and reliability required for the automotive, appliance and furniture markets. AIDA’s DSF Series direct drive servoforming technology allows the DSF-S to provide superior control of all aspects of the stamping operation and offers other performance advantages including:
■ Increased productivity
■ Reduced vibration and noise
■ Forming operations not possible on conventional presses
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA DSF-T LARGE CAPACITY TRANSFER SERVO PRESS | 300 - 3000 METRIC TONS CAPACITY
Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
AIDA DSF-U PRECISION SERVO PRESS | 160 - 600 METRIC TONS CAPACITY
Combining Precision Stamping Design with Servo Press Technology:
The DSF-U precision servo press series is a completely new and innovative metal stamping press that combines the award winning features of the ULX Series (2004 “Ten Greatest Innovations Prize” – Daily Industrial Press), with the highly celebrated AIDA DSF Servo Press system (2002 “10 Greatest Innovations Prize”, 2004 “Japan Brand Prize”, 2009 “10 Greatest Innovations Prize” – Daily Industrial Press). AIDA DSF Servo Press Technology, with its unique high-torque/low RPM servo motor design, offers completely programmable stroke and velocity profiles and a direct drive system.
Enabling Stampers to Shift to Near-Net-Shape Metalforming:
ULX series high precision presses, which incorporate a highly rigid 9-point support system, zero-clearance slide gibs and a no con-rod design, have enabled customers to shift from secondary machining processes to high-precision, near-net-shape metalforming. Additionally, the ULX increases the life of the die and achieves high dynamic accuracy not possible in a conventional mechanical press. AIDA’s ULX precision stamping presses are the first presses to be more accurate than the die. The DSF-U Servo Press will provide customers with the ability to produce products with even higher accuracies, especially products formed via ironing, flattening, or bulging processes that are easily influenced by changes in forming speeds.
New Forming Methods and Minimal Energy Consumption:
The DSF-U Series not only contributes to the manufacturing of major super-high precision parts demanded for by environment-related devices and safety-related components in automobiles, it has also contributed to the development of new materials and new forming methods. Additionally the AIDA developed capacitor bank system enables the production of products with minimal energy consumption.

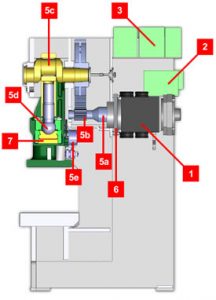

Features & Benefits
- AIDA High Torque, Low RPM Servo-Motor
- Amplifier/Servo-Controller
- AIDA ECO Servo Press Power Management System
- Manual Step Feed
- Standard Mechanical Drivetrain
- Mechanical Safety Brake
- AIDA Patented Metal-Seal Type Hydraulic Overload Protection
- Light Curtains Across Die Space Area with Mechanical Side Guards
- Full Recirculating Oil Lubrication System
- CNC Control with Color HMI
- Infinitely Programmable Stroke Profile Control a: Constant Velocity Motion b: Nine Pre-Programmed Motions c: Pendulum Motion
PRECISION PRESS
AIDA ULX PRECISION PRESS | STRAIGHTSIDE | 160 - 600 METRIC TONS
The Ultimate in Precision Stamping Presses:
The major problems in conventional press work are:
■ The shimmy motion of the slide caused by shocks at the time punches contact the material
■ The tipping motion of the slide caused by off-center loading
■ The snap-through during stamping operations
The industry demands:
■ Improved part quality
■ Increased die life
■ Improved versatility of forming systems
The AIDA Solution – The ULX Series:
The first industry design where the press is more accurate than the die. The AIDA ULX Precision Stamping Press Series is designed to prevent the shimmy motion of the slide or the rotating moment of the crankshaft. The arrangement of the eight zero-clearance spherical shoe type gibs on the slide allows for high-precision forming.

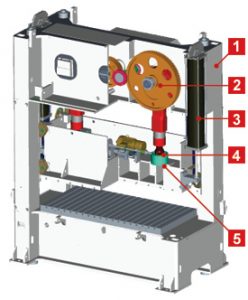

Features & Benefits
- Revolutionary 9 point support system
- Single-point, center suspension, no con rod design
- Ideal for progressive, transfer and near fine blanking stamping press operations
- Innovative design with 18 patents pending
Related posts
NEW YEAR, NEW LINES !!
July 15, 2020
